Beside-the-press Granulator
Category：
Advantage & Benefit
Features

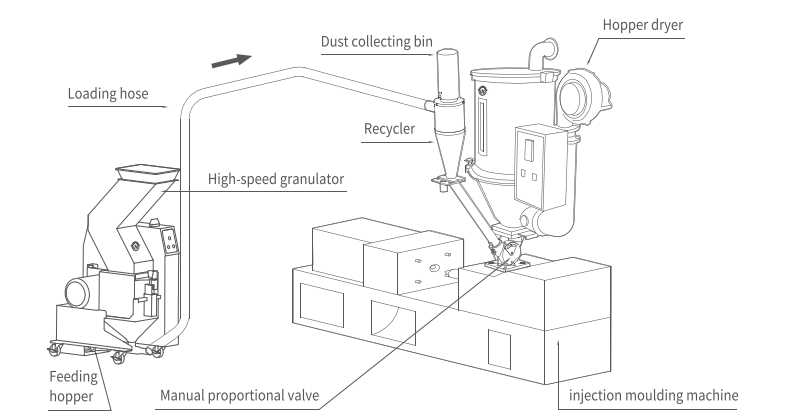

Pairing with a dryer and other auxiliary equipment for a complete recycling system
Eliminate the complicated intermediate links in the recycling process, greatly avoiding the waste of manpower and materials
Widely applicable for on-site recycling of defective plastic products such as fine and small plastic bottles, containers, plastic films, sheets, and nozzle materials
Benefit
Minimal powder and dust
Quiet operation
Low energy consumption
Technical Specifications
| Model |
Crushing Chamber (mm) |
Throughput(kg/h) | Revolution (r/min) | Fixed Blade (pcs) | Rotary Blade (pcs) | Motor Power | Blower Power | Screen Power （mm） |
Dimension Opening (mm) |
Net Weight (kg) |
||
| KW | HP | KW | HP | |||||||||
| WSGI210D+RFC | 210×200 | 50-90 | 250 | 2 | 3 | 1.5 | 2 | 0.55 | 0.75 | 6 | 89×53×138 | 230 |
| WSGI210D+RF | 210×200 | 50-90 | 250 | 2 | 3 | 1.5 | 2 | / | / | 6 | 89×53×138 | 230 |
| WSGI210D+AL | 210×200 | 50-90 | 250 | 2 | 3 | 1.5 | 2 | / | / | 6 | 89×53×138 | 230 |
| WSGI210D+JL | 210×200 | 50-90 | 250 | 2 | 3 | 1.5 | 2 | / | / | 6 | 89×53×138 | 230 |
| WSGI310D+RF | 310×230 | 80-130 | 300 | 4 | 6 | 3 | 4 | 0.75 | 1 | 6 | 97×68×145 | 395 |
| WSGI310D+AL | 310×230 | 80-130 | 300 | 4 | 6 | 3 | 4 | / | / | 6 | 97×68×145 | 390 |
Application Scenarios
Plastic
Plastic
Previous
Previous
FAQ
How do you turn plastic into granules?
The process involves cutting plastic scraps into small pieces and heating them until they melt. The molten plastic is then passed through a die, which produces cylindrical pellets. These pellets can be reused as raw material in manufacturing plants, thereby reducing raw material costs.
What is a granulator and what type of material is fed into it how is the regrind used?
A granulator is specifically used in plastic processing for size reduce plastic lumps into plastic flakes, resin or regrind. Granulators are used to reduce runners and scrap back to pellet size pieces that blend back in with virgin resins. Granulator is also known as crusher or grinder.
What are granulators used for?
Granulators are essentially rotary grinders that are used to grind scrap parts and melt delivery systems (sprues and runners) into feedstock sized granules for reprocessing. This allows the molder to reduce waste and produce components more cost effectively.
What is a plastic granulator?
A Plastic Granulator is a machine used for breaking down plastic products for Recycling. These machines come in a variety of types for industries and workshops and the various sizes of plastic products.
What is plastic processing machine?
Plastic processing machinery is used to create a variety of products. This machinery is designed to process raw materials and turn them into usable forms.
