Dust Separating Collector
Category：
Advantage & Benefit
Features
Separates powder and dust from regrind
Automatically recycled
A dust collection bag is provided with the storage bin to minimize pollution
Benefit
The operating environment is clean and environmentally friendly
Simple operation

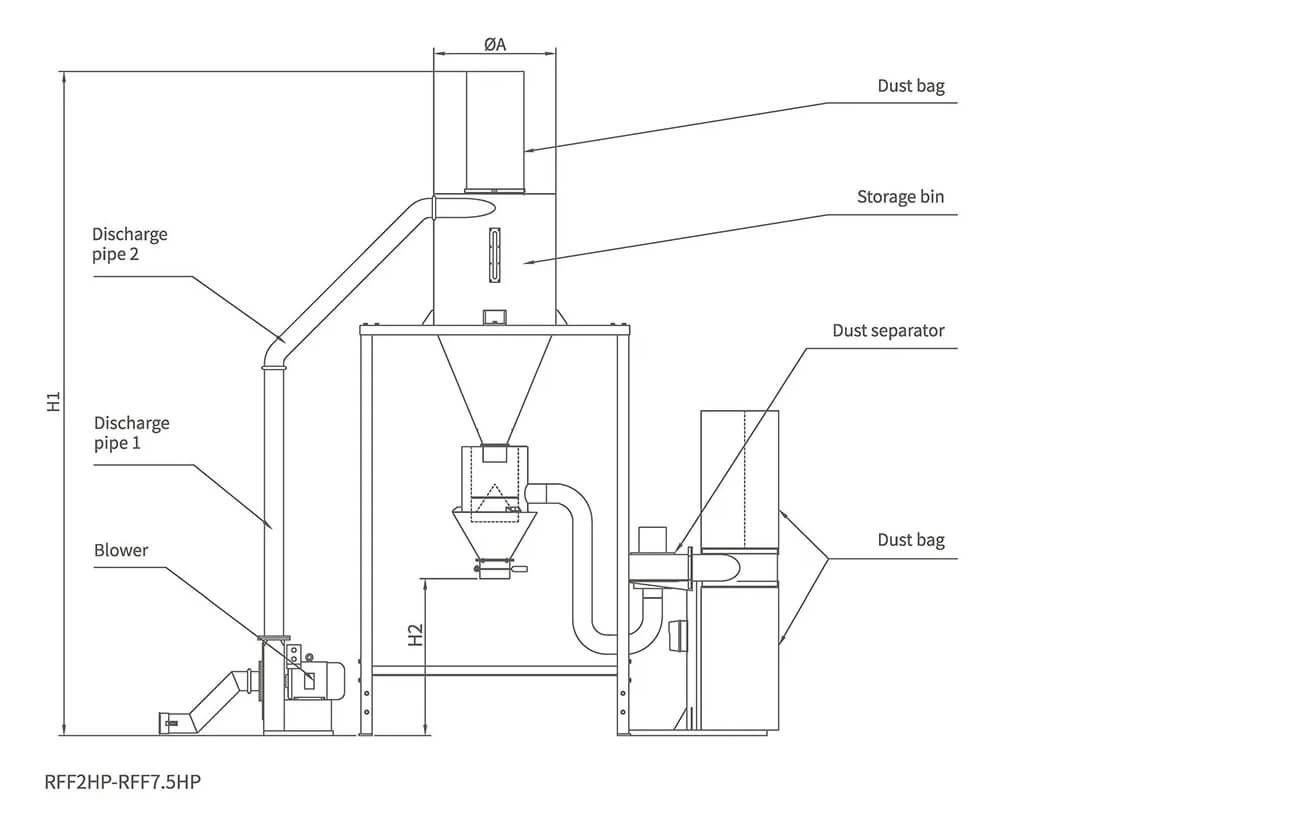

Technical Specifications
| Model | Motoe Power |
Hose Diameter (mm) |
Conveying Height(m) |
Storage Bin Volume(kg) |
Compatible Granulator Model(HP) |
Dust Separator Motor(kW) |
ΦA (mm) |
H1 (mm) |
H2 (mm) |
| RFF-2HP | 1.5kw/2HP | Φ76 | 3 |
100 （Not stockable） |
5-10 | 0.4 | Φ650 | 3300 | 800 |
| RFF-3HP | 2.2kw/3HP | Φ102 | 3 | 15-20 | 0.4 | ||||
| RFF-4HP | 3kw/4HP | Φ102 | 4 | 30-40 | 0.4 | 3550 | |||
| RFF-5HP | 4kw/5HP | Φ127 | 5 | 50 | 1 | ||||
| RF-F7.5HP | 5.5kw/7.5HP | Φ127 | 5 | 50-75 | 1 |
Previous
Previous
FAQ
How do you turn plastic into granules?
The process involves cutting plastic scraps into small pieces and heating them until they melt. The molten plastic is then passed through a die, which produces cylindrical pellets. These pellets can be reused as raw material in manufacturing plants, thereby reducing raw material costs.
What is a granulator and what type of material is fed into it how is the regrind used?
A granulator is specifically used in plastic processing for size reduce plastic lumps into plastic flakes, resin or regrind. Granulators are used to reduce runners and scrap back to pellet size pieces that blend back in with virgin resins. Granulator is also known as crusher or grinder.
What are granulators used for?
Granulators are essentially rotary grinders that are used to grind scrap parts and melt delivery systems (sprues and runners) into feedstock sized granules for reprocessing. This allows the molder to reduce waste and produce components more cost effectively.
What is a plastic granulator?
A Plastic Granulator is a machine used for breaking down plastic products for Recycling. These machines come in a variety of types for industries and workshops and the various sizes of plastic products.
What is plastic processing machine?
Plastic processing machinery is used to create a variety of products. This machinery is designed to process raw materials and turn them into usable forms.
